Chrome Plated Bar

Product catalogue

Chrome Plated Bar

Chrome plated round bar is mostly designed to be used for hydraulic piston rod and pneumatic piston rod manufacturing and repairing. So some people also may call this product hydraulic cylinder rod approximately. However, besides the above, chrome plated rods can also be used in applications where high performance surface finishing and high accuracy dimension tolerance are required.

email enquire now

Product Details

Our Advantage

Ck45 C45E chrome plated round bar/steel bar/piston rod

Application

Here below is the application list of the chrome rods:

Hydraulic cylinders (chrome plated piston rods)
Pneumatic cylinders / air cylinders (chrome plated piston rods)
Guide rods for plastic manufacturing machine and hydraulic machinery
Rollers for machines, such as packing machine rollers, printing machine rollers
Shaft for machinery, such as Textile machinery center axle, Transport machinery center axle, etc.
Ejector rods for injection molding machines
Vibration absorbers and pistons for some industrial machinery.

Specification

Product Name	Chrome Plated Rod/Bar
Material	CK45, SAE1045, 4140, 4340, JIS45C, 40Cr, 20MnV6, 42CrMo, SS431, SS430, Stainless Steel 304/316/2205, etc.
Delivery Condition	Hard Chrome Piston Rod ( HRC 15-20) Quenched & Tempered (Q+T) Rod (HRC 28-32) Induction Hardened Rod (HRC 55-62) Q+T Induction Hardened Rod (HRC 60-65)
Straightness:	<= 0.2/1000
Roughness:	Ra <= 0.2u
Diameter	As customer’s needs
Chrome layer	20 micron (min) to 100 micron
Length	max 13m
Roundness	DIN2391, EN10305, GB/T 1619
Tolerance	ISO f7/h8/g6
Shape	Round
Protection:	anti-rust oil on outside surface,hard cardboard sleeve protection
Used	Hydraulic Cylinders
Packing:	wooden case

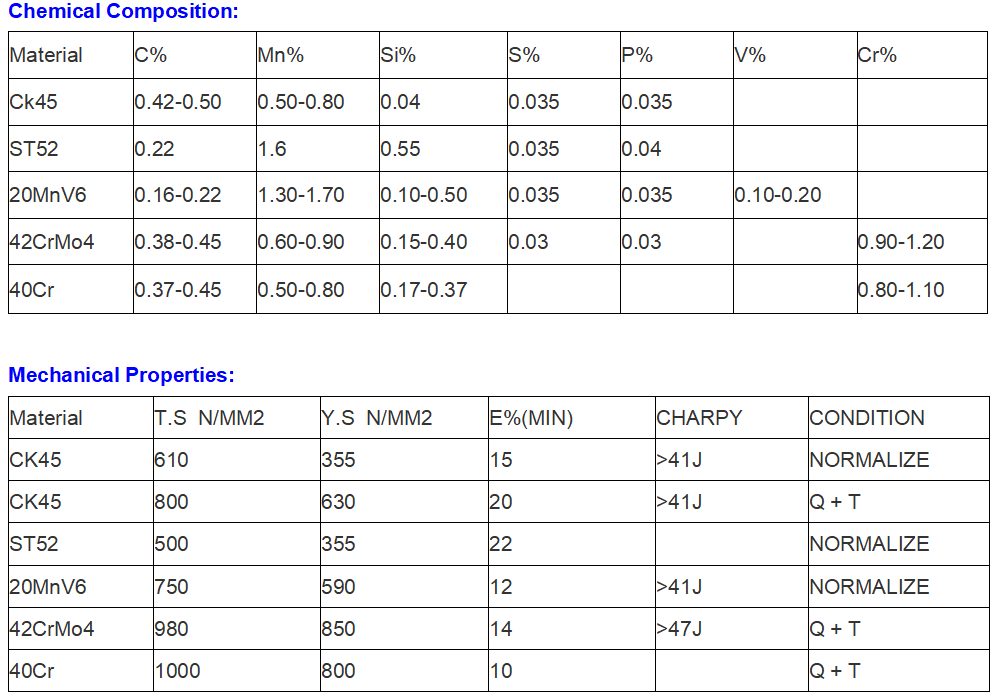

Chemical Composition

Ck45 C45E chrome plated round bar/steel bar/piston rod
