High-pressure hydraulic cylinders require precise engineering designs and high-strength materials. Experienced machining is essential to meet exacting tolerances and ensure performance and field safety. We have the knowledge and experience to deliver complex, custom high-pressure hydraulic cylinders that meet your requirements and application needs.Aggressive Hydraulics manufactures purpose-built cylinders that deliver the performance you need in a style that meets your application requirements. Power through even the most extreme and challenging applications with pressure ratings ranging from 5,000 psi to 10,000 psi hydraulic cylinder designs. Precision Engineering High-Strength Materials Experienced Machining
Customize your high-pressure hydraulic cylinder with application-specific features. Our engineers consider your equipment type, application, and operating environment to design the best custom hydraulic cylinder for the job.

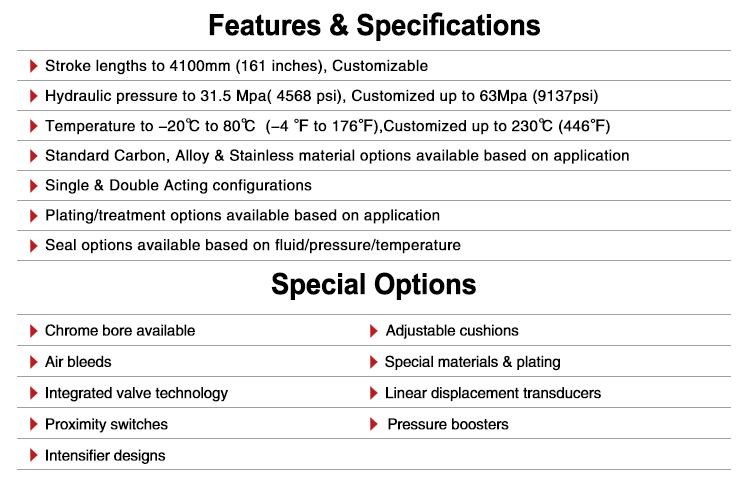

1.Chrome bore available2.Adjustable cushions3.Air bleeds4.Special materials & plating5.Integrated valve technology6.Linear displacement transducers7.Proximity switches8.Pressure boosters9.Intensifier designs10.ASME, ABS, DNV, USCG and API specificationsCylinder Bore diameter | 1.5", 2", 2.5", 3", 3.5", 4", 4.5",5" ... (Accept customized) |
Cylinder Rod diameter | 1" , 11/4" , 1 1/2", 1 3/4" , 2", 2 1/2" ... (Accept customized) |
Cylinder stroke | 4", 6", 8" 10", 12"...50" ... (Accept customized) |
Oil port thread | G3/4", G1/2" , G1" ... |
Work pressure | 3000psi |
Mounting type | Foot/flange/Earrings/Screw Thread/Earing/Pin Eye/Clips Included/Clevis/Cross Tube |
If you have any questions, please contact our customer service. During the purchase process, we can meet all your needs. For hydraulic equipment, please look for Blince！ | |
Product Name | SYG Series Mutil Stage Hydraulic Cylinder | |||
Work Press | 7/14/16/21/31.5MPa | |||
Material | Aluminum,Cast Iron,45mnb Steel,Stainless Steel | |||
Stage | Up to 6 stage | |||
Bore Size | 40mm--320mm,Customizable | |||
Shaft Diameter | 20mm--220mm,Customizable | |||
Stroke Length | 30mm--14100mm,Customizable | |||
Rod Surface Hardness | HRC48-54 | |||
Paint Color | Black,Yellow,Blue,Brown,Customizable | |||
Mounting | Earring,Flange,Clevis.Foot,Trunnion,Customizable | |||
Warrenty | 1 Year | |||
MOQ | 1 Piece | |||
Delivery Time | 7-15 Days,Also depands on specific demands | |||
Certification | ISO9001,CE | |||
We are happy to answer any questions you have regarding our product lines and services. Please tell us a little more about yourself and we will have someone contact you as soon as possible.
