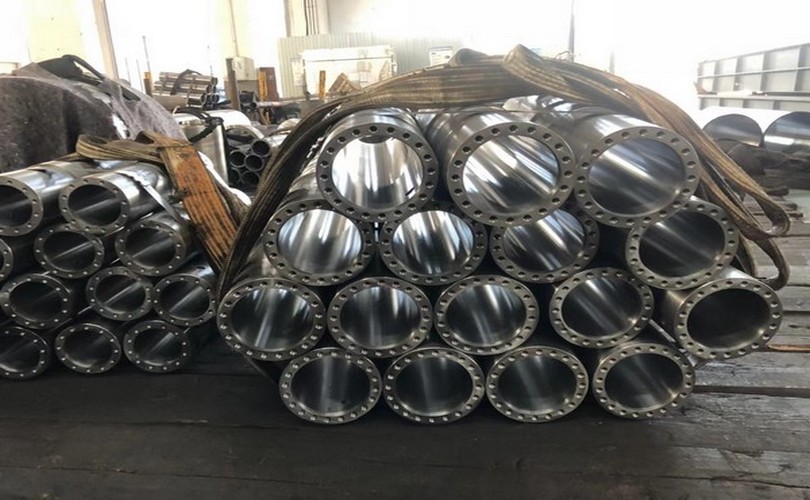

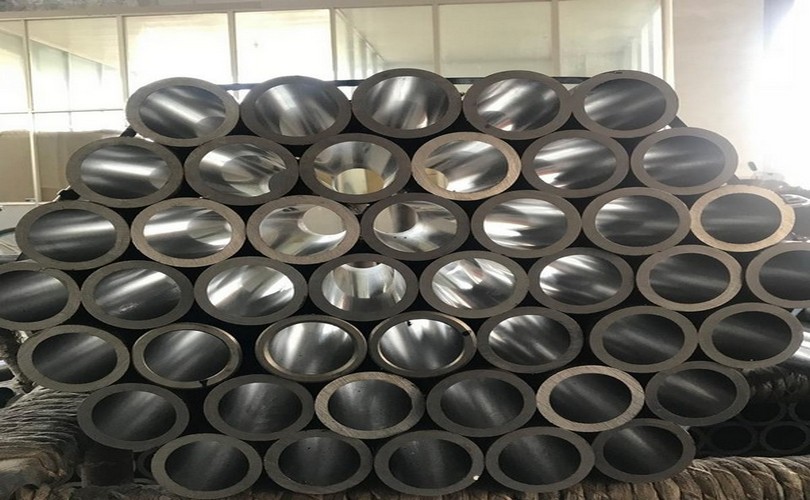

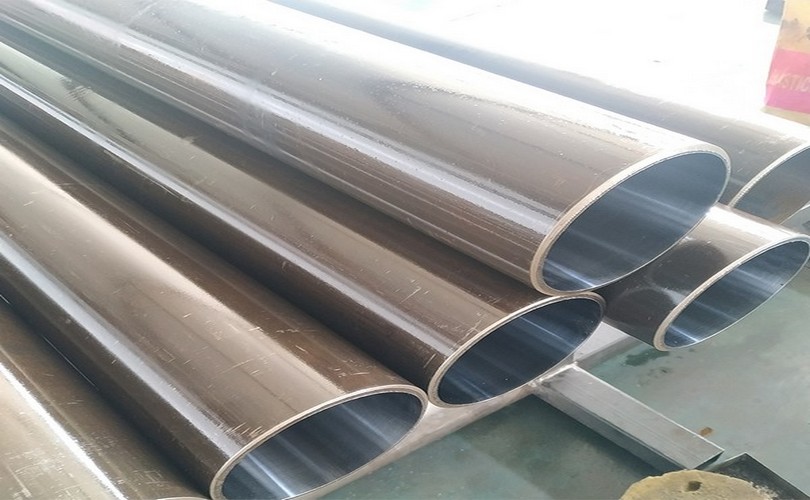

Honed tube is produced using our "Suitable to Hone" Drawn Over Mandrel (DOM) and Cold Drawn Seamless (CDS).
Honed tube is a kind of smooth bore steel tube used to manufacture hydraulic cylinder barrels that is the core part of a piece of hydraulic cylinder
Steel Grade | C | SI | Mn | P | S | Cr | Ni | Cu |
20# | 0.17-0.24 | 0.17-0.37 | 0.35-0.65 | 0.035 | 0.035 | 0.250 | 0.250 | |
45# | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 | 0.035 | 0.035 | 0.250 | 0.250 | |
Q345B | ≤0.2 | ≤0.5 | 1.00-1.60 | 0.030 | 0.030 | 0.030 | 0.250 | 0.08 |
Q345D | ≤0.2 | ≤0.5 | 1.00-1.60 | 0.030 | 0.030 | 0.250 | 0.250 | 0.15 |
25Mn | 0.22-0.29 | 0.17-0.37 | 0.70-1.00 | 0.035 | 0.035 | |||
27SiMn | 0.22-0.32 | 1.10-1.40 | 1.10-1.40 | 0.035 | 0.035 | 0.300 | 0.300 | |
E355 | ≤0.2 | ≤0.55 | ≤1.6 | 0.025 | 0.025 | |||
SAE1026 | 0.22-0.28 | 0.15-0.35 | 0.60-0.90 | 0.040 | 0.050 |
Steel Grade | C | SI | Mn | P | S | Cr | Ni | Cu |
20# | 0.17-0.24 | 0.17-0.37 | 0.35-0.65 | 0.035 | 0.035 | 0.250 | 0.250 | / |
45# | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 | 0.035 | 0.035 | 0.250 | 0.300 | / |
Q345B | ≤0.2 | ≤0.5 | 1.00-1.60 | 0.030 | 0.030 | 0.300 | 0.250 | 0.08 |
Q345D | ≤0.2 | ≤0.5 | 1.00-1.60 | 0.030 | 0.030 | 0.250 | 0.250 | 0.15 |
25Mn | 0.22-0.29 | 0.17-0.37 | 0.70-1.00 | 0.035 | 0.035 | / | / | / |
27SiMn | 0.22-0.32 | 1.10-1.40 | 1.10-1.40 | 0.035 | 0.035 | 0.300 | 0.300 | / |
E355 | ≤0.2 | ≤0.55 | ≤1.6 | 0.025 | 0.025 | 0.250 | 0.250 | / |
SAE1026 | 0.22-0.28 | 0.15-0.35 | 0.60-0.90 | 0.040 | 0.050 | / | / | / |
