Professional manufacturer of honed tube & chrome rod/bar/shaft, founded in 2004, one of biggest manufacturer in China. We make honed tubes, Honed steel tubing, Hydraulic cylinder tubes, Skived tubes, Bored tubes; Chrome plated piston rods, Chrome bars, Linear shaft, Hollow rods; Cold drawn tubes, Pre-hone tubes, Ready to hone tubes.
Product Description
1. Description: Honed tube is a kind of smooth bore steel tube used to manufacture hydraulic cylinder barrels that is the core part of a piece of hydraulic cylinder.
2. Commodity: E355 Honed tube
3. Size range: 40mm*30mm-580mm*500mm
4. Available steel grade:
| SAE/AISI: | SAE1020, SAE1026, SAE1045, SAE4130, SAE4140 |
| DIN: | ST52, ST52.3, ST52.4 |
| EN: | E355, C45E, 25CrMo4, 42CrMo4, CK45, S45C, E410, E470 |
| GB: | 20#, 45#, 16Mn, Q345B, Q345C, Q345D, Q345E, 25Mn, 27SiMn, |

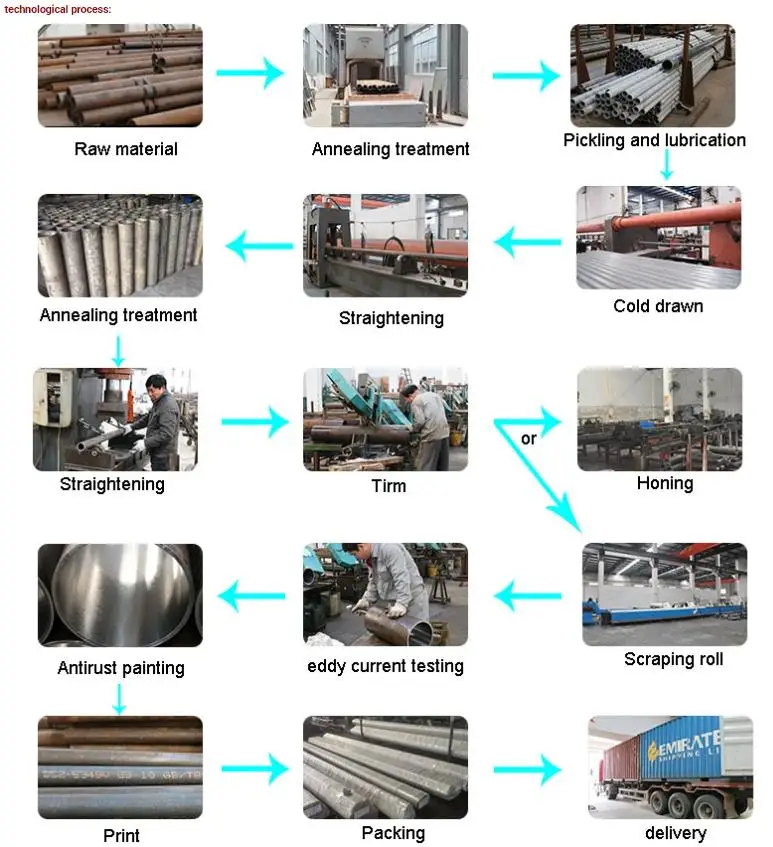

5. Manufacture method: Cold rolled, hydraulic cold drawn, hot rolled+deep hole boring
6. Delivery condition:
| BK | BKW | BKS | GBK | NBK | Q+T |
| +C | +LC | +SR | +A | +N | |
| Cold rolled | Cold drawn | Stress relieved | Annealed | Normalized | Quenched+Tempered |
7. Bore treatment: Honing, skiving&roller burnishing
8. Bore roughness control: Ra0.25um max or Ra0, 35um max for honed tubes, Ra0.25um max for skived&roller burnished tubes.
9. End finish: Plain ends with square cuts, free of burrs for honed tubes. Little bevelled ends for skived&roller burnished tubes.
10. Standard export packing: In bundles tied with steel strips. Int&ext oil coating. End plastic caps. External packing by PVC bags and knit bags.
11. Customized packing and marking can be provided upon request.
12. H8 tolerance:
| ID range | Tolerance | ID range | Tolerance |
| 18< d ≤30 | +0/+0.033 | 180< d ≤250 | +0/+0.072 |
| 30< d ≤50 | +0/+0.039 | 250< d ≤300 | +0/+0.081 |
| 50< d ≤80 | +0/+0.046 | 300< d ≤315 | +0/+0.081 |
| 80< d ≤120 | +0/+0.054 | 315< d ≤400 | +0/+0.089 |
| 120< d ≤180 | +0/+0.063 | 400< d ≤500 | +0/+0.097 |
Standard:
API 5L, API 5CT, ASTM A106/A53, ASTM A519, JIS G 3441, JIS G3444, JIS G3445 DIN 2391, EN10305, EN10210, ASME SA106, SA192, SA210,
SA213, SA335, DIN17175, ASTM A179…
Certificate:
API 5L PSL1/ PSL2, API 5CT,ISO 9001-2008
Out Diameter: 10.3-914.4mm
Wall Thickness: 1.73-40mm
Length: Random Length, Fixed Length, SRL, DRL
Steel Grade: API 5L: GR B, X42, X46, X56, X60, X65, X70
ASTM A53/A106: GR A, GR B, GR C
ASME SA106: GR.A, GR.B, GR.C
ASME SA192: SA192
ASME SA209M: T1, T1a
ASME SA210: GR.A-1, GR.C
ASME SA213: T2, T5, T9, T11, T12, T22
ASME SA335: P2, P5, P9, P11, P12, P22, P91 ASTM A333:Gr.1, Gr.3, Gr.4, Gr.6, Gr.7, Gr.8, Gr.9, Gr.10, Gr.11
ASTM A333:Gr.1, Gr.3, Gr.4, Gr.6, Gr.7, Gr.8, Gr.9, Gr.10, Gr.11
DIN17175:ST35.8, ST45.8, 15Mo3, 13CrMo44
Heat treatment:
Annealed: Bright annealed,Spheroidize annealed, Normalized, Stress relieved, Cold finished, Quenched and Tempered
Delivery Condition: BKS, NBK, BK, BKW, GBK(+A), NBK(+N), BK(+C)
Mill Test Certificate:
EN 10204/3.1B
