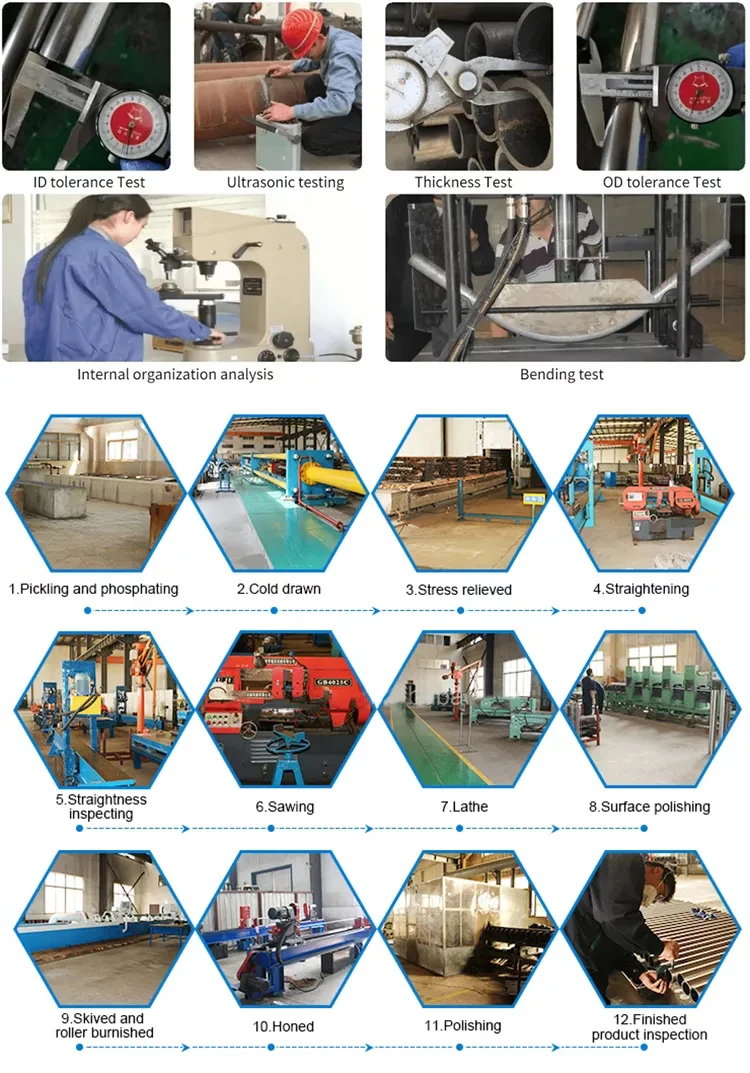

Honed tubes are widely used in hydraulic cylinders, cylinders, hydraulic machinery, engineering machinery, petroleum machinery, agricultural machinery, filling machinery, mining machinery and other fields. Main features : 1. It is mainly used to produce pneumatic or hydraulic components 2. For outer cylinder of oil cylinder 3. The honing process is adopted to meet the requirements of the inner hole of cylinder tube 4. High precision and high finish, the finish can reach ra0.2-0.4um
Hydraulic Cylinder Honing Tube | |||||
Inside Dia
(mm) |
ID Tolerance (mm) |
WT Tolerance
(mm) | |||
H7 | H8 | H9 | H10 | ||
≤30 | +0.021/0 | +0.033/0 | +0.052/0 | +0.084/0 |
±7.5% >210mm ±10% |
30 - ≤50 | +0.025/0 | +0.039/0 | +0.062/0 | +0.100/0 | |
50 - ≤80 | +0.030/0 | +0.046/0 | +0.074/0 | +0.120/0 | |
80 - ≤120 | +0.035/0 | +0.054/0 | +0.087/0 | +0.140/0 | |
120 - ≤180 | +0.040/0 | +0.063/0 | +0.100/0 | +0.160/0 | |
180 - ≤250 | +0.046/0 | +0.072/0 | +0.115/0 | +0.185/0 | |
250 - ≤315 | +0.052/0 | +0.081/0 | +0.130/0 | +0.210/0 | |
315 - ≤700 | +0.057/0 | +0.089/0 | +0.140/0 | +0.230/0 | |
| Chemical Composition % | |||||
C |
Si |
Mn | P | S | Al | |
≤ | ≥ | |||||
20# | 0.17-0.24 | 0.17-0.37 | 0.35-0.65 | 0.035 | 0.035 | / |
45# | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 | 0.035 | 0.035 | / |
Q345B | ≤0.2 | ≤0.5 | 1.00-1.60 | 0.03 | 0.03 | / |
Q345D | ≤0.2 | ≤0.5 | 1.00-1.60 | 0.03 | 0.03 | 0.015 |
25Mn | 0.22-0.29 | 0.17-0.37 | 0.70-1.00 | 0.035 | 0.035 | / |
27SiMn | 0.24-0.32 | 1.10-1.40 | 1.10-1.40 | 0.035 | 0.035 | / |
ST52 | ≤0.22 | ≤0.55 | ≤1.6 | 0.025 | 0.025 | / |
SAE1026 | 0.22-0.28 | 0.15-0.35 | 0.60-0.90 | 0.04 | 0.05 | / |
