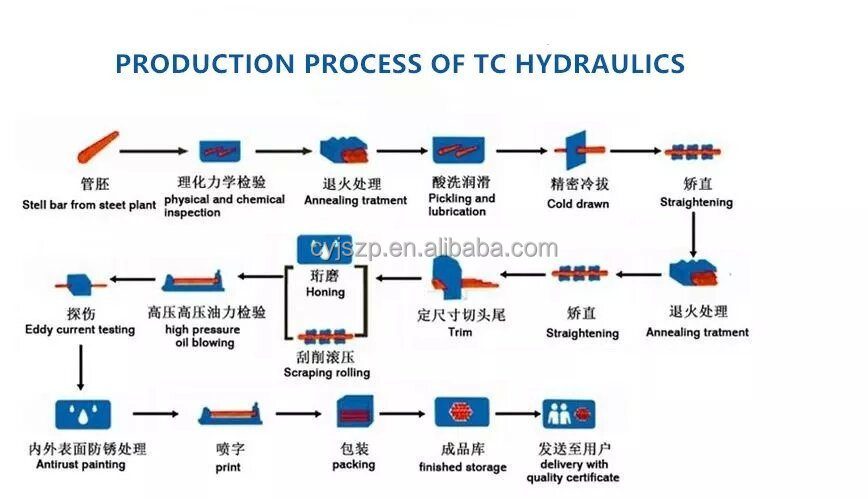

Honed tube was made by cold-drawn tube. which was precision processed by boring, reaming, skiving or honing. When get through those process honed tube can be easy to make into hydraulic cylinder and can be ensure seal ability, reduce abrasion, move smoothly. ST52 BK S E355 Seamless Steel Honed Tube for Hydraulic Cylinder Honed tube can be produced according to the demands of customers, tolerance as H8, H9. According to the pressure requirement and diameter size, different material would be chosen . Material: DIN2391 standard ST52, EN10305 standard E355, 16Mn, ASTM A106B, C20/20#, CK45 Standard: GB/T8713-88, GB/T3639-2009, DIN2391, EN10305 ASTM A519, DIN2391, EN10204-1
ID size | ID Tolerance |
| ||||
H7 | H8 | H9 | H10 | H11 | ||
30 | +0.0210 | +0.0330 | +0.0520 | +0.0840 | +0.1300 | ±5% |
>30-50 | +0.0250 | +0.0390 | +0.0620 | +0.1000 | +0.1600 | |
>50-80 | +0.0300 | +0.0460 | +0.0740 | +0.1200 | +0.1900 | |
>80-120 | +0.0350 | +0.0540 | +0.0870 | +0.1400 | +0.2200 | |
>120-180 | +0.0400 | +0.0630 | +0.1000 | +0.1600 | +0.2500 | |
>180-250 | +0.0460 | +0.072 | +0.1150 | +0.1850 | +0.2900 | |
>250-315 | +0.0520 | +0.0810 | +0.1300 | +0.2100 | +0.3200 | |
>315-800 | +0.0570 | +0.0890 | +0.1400 | +0.2300 | +0.3600 | |
Grade | C | Mn | P≤ | S≤ | Si | Cr | Mo |
1010 | 0.08-0.13 | 0.30-0.60 | 0.04 | 0.05 | - | - | - |
1020 | 0.18-0.23 | 0.30-0.60 | 0.04 | 0.05 | - | - | - |
1045 | 0.43-0.50 | 0.60-0.90 | 0.04 | 0.05 | - | - | - |
4130 | 0.28-0.33 | 0.40-0.60 | 0.04 | 0.05 | 0.15-0.35 | 0.80-1.10 | 0.15-0.25 |
4140 | 0.38-0.43 | 0.75-1.00 | 0.04 | 0.05 | 0.15-0.35 | 0.80-1.10 | 0.15-0.25 |
